Go Back   iRV2 Forums > TRUCK CONVERSIONS, MDT's & HDT's FORUMS > HDT Conversions
Click Here to Login
Join iRV2 Today

Mission Statement: Supporting thoughtful exchange of knowledge, values and experience among RV enthusiasts.
Reply

Thread Tools Search this Thread Display Modes

Old 07-18-2013, 12:59 PM   #1
Senior Member

hjsdds's Avatar

Join Date: Apr 2013
Posts: 330
Springfield project.

Bob and Heidi have arrived to our NH "facility".

We'll do a mod which we will "share".

hjs
__________________

__________________
hjsdds is offline   Reply With Quote
Join the #1 RV Forum Today - It's Totally Free!

iRV2.com RV Community - Are you about to start a new improvement on your RV or need some help with some maintenance? Do you need advice on what products to buy? Or maybe you can give others some advice? No matter where you fit in you'll find that iRV2 is a great community to join. Best of all it's totally FREE!

You are currently viewing our boards as a guest so you have limited access to our community. Please take the time to register and you will gain a lot of great new features including; the ability to participate in discussions, network with other RV owners, see fewer ads, upload photographs, create an RV blog, send private messages and so much, much more!

Old 07-18-2013, 02:29 PM   #2
Member

Join Date: Jun 2013
Posts: 60
Thought you were packing up the NH facility?
__________________

__________________
2011 NuWa Champagne 38 CKRD
2013 Mini Turbo Go-kart
2003 Freightliner "Bad to the Bone" Classic XL
VetRVer is offline   Reply With Quote
Old 07-18-2013, 05:14 PM   #3
Senior Member

hjsdds's Avatar

Join Date: Apr 2013
Posts: 330
Yes we are but not till 13th of August.

hjs
__________________
hjsdds is offline   Reply With Quote
Old 07-19-2013, 05:14 AM   #4
Senior Member

Join Date: Jun 2013
Posts: 173
Was wondering if they got there yet. Hope the work goes smoothly. Looks good sitting there.

Rod
__________________
lappir is offline   Reply With Quote
Old 07-19-2013, 02:34 PM   #5
Senior Member

Join Date: Sep 2000
Location: Fulltimer
Posts: 186
So, what are you doing???
__________________
Jack and Danielle Mayer
2015 New Horizons Majestic 44RLTSS/ Volvo 780
Jack Mayer is offline   Reply With Quote
Old 07-19-2013, 03:08 PM   #6
Senior Member

hjsdds's Avatar

Join Date: Apr 2013
Posts: 330
Primary "fix" is to modify the pin box so that fifth doesn't ride nose high. It's not a straight pin box and as is can't go up any higher.
But Bob is coming up with "other" "needs".

hjs
__________________
hjsdds is offline   Reply With Quote
Old 08-01-2013, 03:54 PM   #7
Senior Member

hjsdds's Avatar

Join Date: Apr 2013
Posts: 330
OK, progress report.

We found a level parking lot to see what was the extent of a "disagreement"
between 2L truck, ET Jr. and a SpaceCraft.

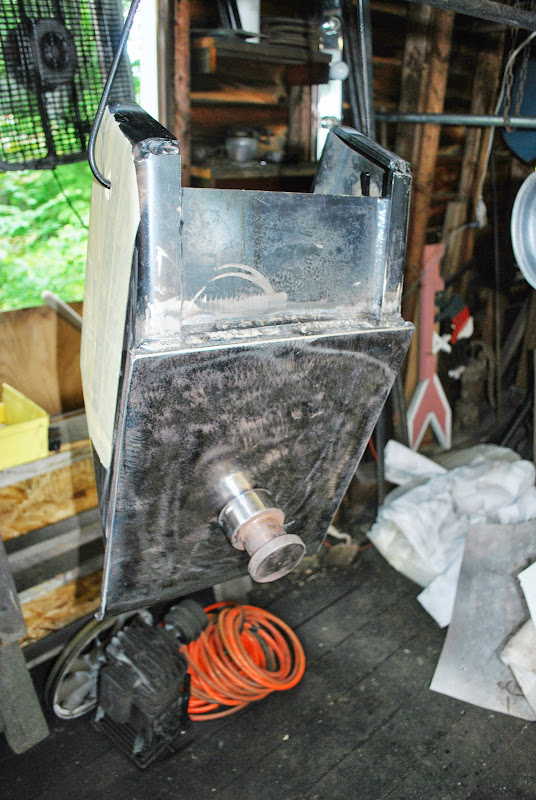

About 4 1/2 inches of disagreement. Several option we discussed and considered, from minimal to "very radical" and we settled on an compromise solution. Modify Marsha's 29,000 lb box.
The box was cut down and new base plate and a new pin were welded in.



We modified the "original" a bit. The original had 3/16" pin plate with an inch reinforcing backer. We opted for 1/2" pin plate and a 1/2" backer.

Also the pin is double welded, an internal chamfer (between the plate and the backer) is filled with a weld (then there is the top weld).
Robert did FEA analysis and "the fix" is roughly equal in strength and stiffer.
The unit is currently hanging in the "paint shop".

hjs
__________________
hjsdds is offline   Reply With Quote
Old 08-01-2013, 06:06 PM   #8
Member

Join Date: Jun 2013
Posts: 60
Nice job
__________________
2011 NuWa Champagne 38 CKRD
2013 Mini Turbo Go-kart
2003 Freightliner "Bad to the Bone" Classic XL
VetRVer is offline   Reply With Quote
Old 08-03-2013, 08:10 PM   #9
Senior Member

hjsdds's Avatar

Join Date: Apr 2013
Posts: 330
Before,

after.


hjs
__________________
hjsdds is offline   Reply With Quote
Old 08-08-2013, 10:30 AM   #10
Senior Member

hjsdds's Avatar

Join Date: Apr 2013
Posts: 330
OK, Jack and Rod, here's the final "skinny" on the project.
Wayland's truck, although not level is set up correctly, the top of the rails is at 40 inches. ET Jr. sitting on top of the deck is at 49 1/2 inches (unfortunately).

To get the SpaceCraft perfectly level, we needed to cut the pin box by 4 1/2 inches.

For various reasons we opted to cut it down 3 1/2 inches. We noticed that that last inch hardly made any difference in a trailer that long (other than making the level "happy") but was going to create lots of grief in other areas.
So here's the first hook up of the new pin box.

Note that we still have a pretty "generous" deck clearance for off camber turns.


hjs
__________________
hjsdds is offline   Reply With Quote
Old 08-08-2013, 11:39 AM   #11
Senior Member

Ann n Gene's Avatar

Join Date: Apr 2004
Location: Stillwater, Ok
Posts: 3,506
Heny strikes again!! Looks great Heny, another good job in the books. Sure miss you guys, hope to see you on the road sometime soon.
__________________
2016 Entegra
Cornerstone 45B
2017 Ford F150 King Ranch
Ann n Gene is offline   Reply With Quote
Old 08-08-2013, 03:56 PM   #12
Junior Member

ky rb's Avatar

Join Date: May 2013
Posts: 5
Greetings and Salutations Henry,

I completely concur with Gene, very nicely done. Appears to be your typical high quality work.

Have a good one and we'll catch ya later . . .

RB
__________________
ky rb is offline   Reply With Quote
Old 08-08-2013, 04:58 PM   #13
Member

Join Date: Jun 2013
Posts: 60
Lookin good Henry, as usual.
__________________
2011 NuWa Champagne 38 CKRD
2013 Mini Turbo Go-kart
2003 Freightliner "Bad to the Bone" Classic XL
VetRVer is offline   Reply With Quote
Old 08-08-2013, 06:41 PM   #14
Senior Member

Join Date: Jun 2013
Posts: 173
Thanks Henry,

Haven't heard from Marsha on if she will put one of those pin boxes on my possible build. She and Wyatt may be crunching numbers as we type..........

I know I will need to take the deck off. and was planning to add a dovetail to it now that the Mini has been replaced with something with much more ground clearance. I will also most of the time be loading a motorcycle in to the box with a couple bicycles and hopefully my tool boxes. My hitch sits at 46 inches, the deck at 48 and the top of the frame rails are 37 3/4. This was on a seemingly level gravel lot with just a tape measure and my eye. Couldn't find my 4 foot level to get a true level measurement. I also have 53 inches from the back of the box to the front edge of the binkley pin clasp.

Rod
__________________

__________________
lappir is offline   Reply With Quote
Reply



Currently Active Users Viewing This Thread: 1 (0 members and 1 guests)

Thread Tools Search this Thread
Search this Thread:

Advanced Search
Display Modes

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off


» Virginia Campgrounds

Reviews provided by


Copyright 2002- Social Knowledge, LLC All Rights Reserved.

All times are GMT -6. The time now is 07:41 PM.


Powered by vBulletin® Version 3.8.8 Beta 1
Copyright ©2000 - 2017, vBulletin Solutions, Inc.
