Old 04-22-2015, 03:54 PM   #1
Senior Member

LakeKerrGuy's Avatar

National RV Owners Club
Florida Cooters Club
Freightliner Owners Club
Join Date: Mar 2013
Location: Salt Springs, FL
Posts: 357
Need help in replacing WH element in 1999 TW 7371.

Plenty obvious someone who has no plans of ever working on a water heater designed this thing. Heater is under and to the right of galley sink. Some panels removed to even see it. Tested element. It's open. I intend to eliminate switch that was on metal box at element. It is useless. I've installed a http://www.amazon.com/gp/product/B00...?ie=UTF8&psc=1 below the counter extension.

How do you get the element out. No way to get an open or box wrench on it. I bought a 1 1/2" socket but cannot budge it. Socket shoulder only sticks out about 1/8" so it is very difficult to get any leverage. How have you guys done it.
__________________

__________________
Jack & Beverly
1999 National Tradewinds 7371; Cat 3126; 6 Speed Allison; 7.5 KW Onan; Freedom 20
2012 Nissan Versa on a EZE Tow
LakeKerrGuy is offline   Reply With Quote
Join the #1 RV Forum Today - It's Totally Free!

iRV2.com RV Community - Are you about to start a new improvement on your RV or need some help with some maintenance? Do you need advice on what products to buy? Or maybe you can give others some advice? No matter where you fit in you'll find that iRV2 is a great community to join. Best of all it's totally FREE!

You are currently viewing our boards as a guest so you have limited access to our community. Please take the time to register and you will gain a lot of great new features including; the ability to participate in discussions, network with other RV owners, see fewer ads, upload photographs, create an RV blog, send private messages and so much, much more!

Old 04-22-2015, 04:43 PM   #2
Senior Member

Join Date: Feb 2013
Posts: 181
Yes it is tight. After bending a tool I got from the hardware store I went to a 3/4 drive socket. I had to remove some metal so the socket would reach the element. I did that with a rockwell vibrating tool. Big box stores have the generic version for 20.00. Just don't round off the hex part of the element or it would have been cheeper to have the rv repair guy do it.

Dan
__________________

__________________
2014 Volvo 630 Heren Bed ET Hitch
2017 New Horizons Majestic 35 foot
dadej is offline   Reply With Quote
Old 04-22-2015, 05:24 PM   #3
Senior Member

LakeKerrGuy's Avatar

National RV Owners Club
Florida Cooters Club
Freightliner Owners Club
Join Date: Mar 2013
Location: Salt Springs, FL
Posts: 357
Quote:
Originally Posted by dadej View Post
Yes it is tight. After bending a tool I got from the hardware store I went to a 3/4 drive socket. I had to remove some metal so the socket would reach the element. I did that with a rockwell vibrating tool. Big box stores have the generic version for 20.00. Just don't round off the hex part of the element or it would have been cheeper to have the rv repair guy do it.

Dan
Dan,
I already purchased the 3/4" drive 11/2" socket from Northern Tool. Socket and adapter down to 1/2" drive set me back $18. Just cannot get any leverage. Guess I'll just have to find a way to get a cheater bar on it.

Believe it or not, I did not even know we had a combination heater. Last trip water heater quit working. On investigation, I found the electric conponent. Decided that I'll just get the electric going and work on the gas issue later. Think I now know why the original owner did not say anything to me about using the electric when possible. He likely knew the element was open.
__________________
Jack & Beverly
1999 National Tradewinds 7371; Cat 3126; 6 Speed Allison; 7.5 KW Onan; Freedom 20
2012 Nissan Versa on a EZE Tow
LakeKerrGuy is offline   Reply With Quote
Old 04-22-2015, 08:56 PM   #4
Senior Member

Ray,IN's Avatar

Join Date: Aug 2001
Location: North America somewhere
Posts: 13,699
Any way to use an electric impact wrench? Autozone loans tools free, you pay with a CC, when you return the tool undamaged you get a full refund.
__________________
2000 Winnebago Ultimate Freedom USQ40JD, ISC 8.3 Cummins 350, Spartan MM Chassis. USA 1SG, retired;PPA,Good Sam Life member,FMCA."We the people are the rightful masters of both the Congress and the Courts - not to overthrow the Constitution but to overthrow men who pervert the Constitution. "Abraham Lincoln"
Ray,IN is offline   Reply With Quote
Old 04-22-2015, 09:17 PM   #5
Registered User

Join Date: Aug 2014
Posts: 608
You need a special socket to get it out most of us make our own out of a cheap 1 1/2 socket. The big thing is to grind off the roach area of the socket ( the area where the socket is recessed ) what I do is chuck the socket in a drill then run the grinder and spin the socket with the drill to remove the front edge off the socket so it will grab the element better. On some units there is a shroud so you also have to make the wall thickness thinner again also done with the drill and grinder.

What I mean is grind the top of the socket down so the tapered recess is gone.
__________________
1mainiac is offline   Reply With Quote
Old 04-22-2015, 11:09 PM   #6
Senior Member

LakeKerrGuy's Avatar

National RV Owners Club
Florida Cooters Club
Freightliner Owners Club
Join Date: Mar 2013
Location: Salt Springs, FL
Posts: 357
Quote:
Originally Posted by 1mainiac View Post
You need a special socket to get it out most of us make our own out of a cheap 1 1/2 socket. The big thing is to grind off the roach area of the socket ( the area where the socket is recessed ) what I do is chuck the socket in a drill then run the grinder and spin the socket with the drill to remove the front edge off the socket so it will grab the element better. On some units there is a shroud so you also have to make the wall thickness thinner again also done with the drill and grinder.

What I mean is grind the top of the socket down so the tapered recess is gone.
I cannot get what you are describing in my head. Are you grinding the outside?

The 12 point socket I have will just barely grip the element - there is an 1/8" or so of hex available.

Northern Tool had an impact 6 point but it was over $20
__________________
Jack & Beverly
1999 National Tradewinds 7371; Cat 3126; 6 Speed Allison; 7.5 KW Onan; Freedom 20
2012 Nissan Versa on a EZE Tow
LakeKerrGuy is offline   Reply With Quote
Old 04-22-2015, 11:11 PM   #7
Senior Member

LakeKerrGuy's Avatar

National RV Owners Club
Florida Cooters Club
Freightliner Owners Club
Join Date: Mar 2013
Location: Salt Springs, FL
Posts: 357
Quote:
Originally Posted by Ray,IN View Post
Any way to use an electric impact wrench? Autozone loans tools free, you pay with a CC, when you return the tool undamaged you get a full refund.
If I don't have any success in the morning, I'm going to Autozone in the afternoon.
__________________
Jack & Beverly
1999 National Tradewinds 7371; Cat 3126; 6 Speed Allison; 7.5 KW Onan; Freedom 20
2012 Nissan Versa on a EZE Tow
LakeKerrGuy is offline   Reply With Quote
Old 04-23-2015, 11:06 AM   #8
Senior Member

chboone's Avatar



National RV Owners Club
Ford Super Duty Owner
Join Date: Sep 2010
Location: Horse Town USA, CA.
Posts: 2,933

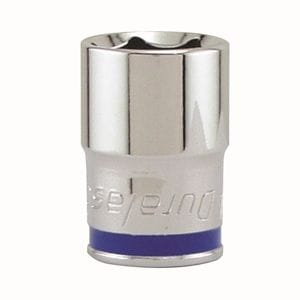

Use a six point socket will grab the hex better and less chance of rounding it off.
__________________
1999 35 ft. Dolphin 5350,F53 Chassis Chassis build date 1/99, Banks System, 5 Stars Tune, Air Lift Air Bags front & rear, Koni Shocks,Blue OX TruCenter,TigerTrak track bars front & rear, Roadmaster 1-3/4" rear auxiliary sway bar,2004 F450 Lariat 6.0 Diesel Crew Cab DRW with B & W Custom Truck Bed, 1994 36 ft. Avion 5th Wheel
chboone is offline   Reply With Quote
Old 04-23-2015, 02:45 PM   #9
Senior Member

Ray,IN's Avatar

Join Date: Aug 2001
Location: North America somewhere
Posts: 13,699
Quote:
Originally Posted by LakeKerrGuy View Post
If I don't have any success in the morning, I'm going to Autozone in the afternoon.
Autozone just may have a 6-pt socket the correct size, if not they go buy one then loan it to you the same way. I would put a few drops of something like Liquid Wrench on the threads now, it might be what is needed to break the corrosion preventing removal.
__________________
2000 Winnebago Ultimate Freedom USQ40JD, ISC 8.3 Cummins 350, Spartan MM Chassis. USA 1SG, retired;PPA,Good Sam Life member,FMCA."We the people are the rightful masters of both the Congress and the Courts - not to overthrow the Constitution but to overthrow men who pervert the Constitution. "Abraham Lincoln"
Ray,IN is offline   Reply With Quote
Old 04-23-2015, 02:57 PM   #10
Senior Member

Skip426's Avatar



Join Date: Apr 2011
Location: Powell River, B.C.
Posts: 14,970
AutoZone , 1 1/2" six point socket in 1/2 drive is what I bought. P/N 75-818, being shorter than a 3/4 drive with adaptor , may give enough room to get a 1/2 drive breaker bar in.
__________________
99DSDP 3884, Freightliner, XC, CAT 3126B, 300 HP /ALLISON 3060
2000 Caravan toad, Remco & Blue Ox.
Skip426 is offline   Reply With Quote
Old 04-23-2015, 03:02 PM   #11
Senior Member

powderman's Avatar

Join Date: Mar 2010
Location: N. E. Ohio & Lady Lake Fl.
Posts: 885
If it doesn't want to back out, it sometimes helps to tighten it just a tad first and then it may come loose. Good luck.
__________________
powderman is offline   Reply With Quote
Old 04-24-2015, 02:25 AM   #12
Senior Member

DD788Snipe's Avatar



Newmar Owners Club
Spartan Chassis
Join Date: Jun 2013
Location: Apple Valley CA
Posts: 914
Use a 6 point socket. Go to a marine supply and purchase a can of Aero Kroil. That stuff is amazing. If you can't find it locally try www.aerokroil.com and order it online. You'll throw your can of WD-40 away.
__________________

Craig & Carolyn Roberts Apple Valley, CA
2006 Newmar 3910 KSDP 400 ISL Cummins Spartan Mountian Master Chassis
Toad: 2017 GMC Canyon 4X4 Crewcab
DD788Snipe is offline   Reply With Quote
Old 04-25-2015, 05:57 PM   #13
Senior Member

Ray,IN's Avatar

Join Date: Aug 2001
Location: North America somewhere
Posts: 13,699
Quote:
Originally Posted by DD788Snipe View Post
Use a 6 point socket. Go to a marine supply and purchase a can of Aero Kroil. That stuff is amazing. If you can't find it locally try www.aerokroil.com and order it online. You'll throw your can of WD-40 away.
Hey, I have found a good use for WD40. I spray my gardening tools with WD40 after wiping all the dirt from them, the gummy residue it leaves keeps them from rusting, of course used motor oil does the same thing.
__________________
2000 Winnebago Ultimate Freedom USQ40JD, ISC 8.3 Cummins 350, Spartan MM Chassis. USA 1SG, retired;PPA,Good Sam Life member,FMCA."We the people are the rightful masters of both the Congress and the Courts - not to overthrow the Constitution but to overthrow men who pervert the Constitution. "Abraham Lincoln"
Ray,IN is offline   Reply With Quote
Old 04-25-2015, 06:37 PM   #14
Senior Member

Join Date: Apr 2014
Location: On the Road
Posts: 1,353
I'm happy when all my garden tools, picks and shovels have a fine patina of rust on them. Means I haven't had to touch them in a long time!


2005 Country Coach Inspire, C9 CAT
__________________

__________________
2012 Nu Wa 363RSBDA
2016 Ford F-350 Dually 6.7
Duoglide1 is offline   Reply With Quote
