Old 07-16-2019, 01:50 AM   #1247
Junior Member

Join Date: May 2018
Location: Goodyear, Az
Posts: 14
We installed the Micro Air on our Ď19 27BHS. As stated above, install was not challenging. We were running AI-Power 2k watt gensets that Costco was carrying in parallel to run the AC but found at higher altitude the single gen would not cover the microwave use (solo without any AC or fridge on) We picked up a Westinghouse iGen 2500 and it fires up the AC every time with no issues. Love the easy start.
__________________

Rthario is offline   Reply With Quote
Join the #1 RV Forum Today - It's Totally Free!

iRV2.com RV Community - Are you about to start a new improvement on your RV or need some help with some maintenance? Do you need advice on what products to buy? Or maybe you can give others some advice? No matter where you fit in you'll find that iRV2 is a great community to join. Best of all it's totally FREE!

You are currently viewing our boards as a guest so you have limited access to our community. Please take the time to register and you will gain a lot of great new features including; the ability to participate in discussions, network with other RV owners, see fewer ads, upload photographs, create an RV blog, send private messages and so much, much more!

Old 07-17-2019, 01:01 PM   #1248
Senior Member

fisher99's Avatar

Outdoors RV Owners Club
Join Date: Dec 2014
Location: NorthEastern Oregon
Posts: 784
Well, I have to admit that I thought that those of you who had added a twist-on waste gate were just being overly paranoid. Until a couple of weeks ago when, unbeknownst to me, my black tank valve had failed to shut after I dumped. I've noticed that it has been requiring more force to shut, and even bought some valve lube, which I hadn't gotten around to using. So, imagine my surprise (horror) when after our last camping trip I removed the cap at the dump station and was flooded full force by the contents of the black tank.

So, I now have a new black tank valve, a new grey tank valve (figured, why not, since they already had the belly open), and one of these:

https://www.amazon.com/gp/product/B0...?ie=UTF8&psc=1
__________________

__________________
2013 Wind River 280RLS, 200W Solar
2013 Ram 2500 Laramie Cummins 4x4
fisher99 is offline   Reply With Quote
Old 07-17-2019, 03:28 PM   #1249
Senior Member

Outdoors RV Owners Club
Join Date: Sep 2018
Location: Mission BC
Posts: 254
That's a shi##y situation, all pun intended. Cheap insurance.
__________________
2018 Black Rock 24kts, 300 watts Solar.
2008 Dodge 3500 4x4, 6.7 Cummins, full delete, 6 spd man. Firestone ride rite airbags.
Brad Wilf is offline   Reply With Quote
Old 07-17-2019, 05:26 PM   #1250
Senior Member

IdahoBob's Avatar

Outdoors RV Owners Club
Join Date: Dec 2013
Location: Pasco, WA
Posts: 1,433
Quote:
Originally Posted by fisher99 View Post
Well, I have to admit that I thought that those of you who had added a twist-on waste gate were just being overly paranoid. Until a couple of weeks ago when, unbeknownst to me, my black tank valve had failed to shut after I dumped. I've noticed that it has been requiring more force to shut, and even bought some valve lube, which I hadn't gotten around to using. So, imagine my surprise (horror) when after our last camping trip I removed the cap at the dump station and was flooded full force by the contents of the black tank.

So, I now have a new black tank valve, a new grey tank valve (figured, why not, since they already had the belly open), and one of these:

https://www.amazon.com/gp/product/B0...?ie=UTF8&psc=1
The twist on secondary dump valve was the first "accessory" I purchased for our last two trailers. For those of us with black and grey tanks that dump through the same exit pipe, the secondary valve provides the benefit of being able to backflush the black tank with the contents of the grey tank. I do that every time I dump and use the SaniFlush only rarely.

Bob
__________________
2014 Wind River 250RDSW
2018 Ram 2500 Laramie CTD 4X4
Pasco, WA
IdahoBob is offline   Reply With Quote
Old 07-18-2019, 06:36 PM   #1251
Senior Member

Super Thirty's Avatar

Outdoors RV Owners Club
Join Date: Apr 2016
Location: La Ronge, SK
Posts: 591
Yeah, learned that lesson last year during our Alaska trip and put on the twist on secondary valve. Didnít want any crappy experiences.
__________________
John & Linda
2015 Timber Ridge 260RLS
2014 Ram 3500 SLT 6.7l Cummins
Super Thirty is offline   Reply With Quote
Old 08-10-2019, 09:18 AM   #1252
Senior Member

Join Date: Dec 2018
Location: California
Posts: 174
Quote:
Originally Posted by Highway 4x4 View Post
So the Honda 2200 will easily do the job with one of these on the 13.5 AC. Would like to scale back my gen on the road trips. The gen is for emergency AC in the trailer.
Right with you on this! I have a generator in the back of our truck under the cover. I try and start it every couple months at home to keep things working right. I hope to never use it while camping. Only for emergency A/C or if I get "snowed or frozen in" somewhere.
__________________
V465
2015 Creek Side 20fq, 450 Watts of Samlex Solar,
2013 GMC Denali, Duramax, Retiring in 2021
Vintage465 is offline   Reply With Quote
Old 08-20-2019, 07:34 PM   #1253
Senior Member

seaeagle2's Avatar

Outdoors RV Owners Club
Join Date: Apr 2015
Posts: 124
I added a dimmer for the LED lights in dinette in our 21RD. I used a 2 wire dimmer, only 2 connections, line and load. I kept the rocker switch in the circuit, that way I didn't have to figure out how to fill the hole. I'd say it only dims to 40percent or so, but I think it should be okay Click image for larger version

Name:	20190820_163620.jpeg
Views:	38
Size:	74.2 KB
ID:	257518Click image for larger version

Name:	20190820_172706.jpeg
Views:	41
Size:	55.4 KB
ID:	257519Click image for larger version

Name:	20190820_163524.jpeg
Views:	33
Size:	57.7 KB
ID:	257520
__________________
"One life, don't blow it" Kona Brewing "If people concentrated on the really important things in life, there'd be a shortage of fishing poles" Gary Larson
seaeagle2 is offline   Reply With Quote
Old 08-21-2019, 09:03 PM   #1254
Senior Member

T Money's Avatar

Outdoors RV Owners Club
Join Date: Sep 2018
Posts: 101
Does this work okay with the factory LEDs? I want to put in some dimmers with a minimum of fuss!
__________________
2019 Outdoors RV Creekside 21RD
2016 Ford Expedition EL, 3 5L EcoBoost
T Money is offline   Reply With Quote
Old 08-21-2019, 10:22 PM   #1255
Senior Member

rarebear.nm's Avatar



Excel Owners Club
Winnebago Owners Club
Ford Super Duty Owner
Join Date: Aug 2014
Location: Santa Fe, NM
Posts: 3,032
These will work for motors or LEDs up to 2 Amps. I've liked them so far.

https://www.amazon.com/gp/product/B0...?ie=UTF8&psc=1
__________________
Fred & Denise (RVM157) New Mexico
2007 Excel Classic 30RSO & 2015 Mini Winnie 22R
2007 RAM 3500, Diesel, 6Spd Auto, SWD, 4x4, CC & LB
rarebear.nm is offline   Reply With Quote
Old 08-25-2019, 06:40 PM   #1256
Senior Member

Rickeoni's Avatar

Outdoors RV Owners Club
Join Date: May 2012
Posts: 1,619
Added some cabinet lighting on our last trip. Battery powered and a proximity sensor so they are simple to install.

https://youtu.be/StTJPf1wELo
Attached Thumbnails
Click image for larger version

Name:	IMG_20190821_210423.jpg
Views:	35
Size:	150.3 KB
ID:	257970   Click image for larger version

Name:	IMG_20190821_210436.jpg
Views:	27
Size:	106.4 KB
ID:	257971

__________________
2008 F450, 2016 Outdoors RV Glacier Peak 26 RKS
[SIGPIC][/SIGPIC]
Tried being normal once, worst 2 minutes of my life!
Rickeoni is offline   Reply With Quote
Old 10-05-2019, 01:21 PM   #1257
Senior Member

ttavasc's Avatar



Ford Super Duty Owner
Outdoors RV Owners Club
Jayco Owners Club
Join Date: Jun 2018
Location: Auburn, WA
Posts: 154
Swapped the analog heat/cool thermostat for a digital one. I went with another Coleman-Mach to match wire for wire and mounting. Very easy and quick upgrade to make - less than 20 minutes. One thing I did notice is it appears that this digital model is being phased out and replaced with a much narrower model which looks like it would complicate things as it may not cover the old mounting holes.
Attached Thumbnails
Click image for larger version

Name:	IMG_20191005_091123819.jpg
Views:	19
Size:	231.8 KB
ID:	262515   Click image for larger version

Name:	IMG_20191005_104215136.jpg
Views:	22
Size:	195.8 KB
ID:	262516

Click image for larger version

Name:	IMG_20191005_104851979.jpg
Views:	23
Size:	216.3 KB
ID:	262517
__________________
TT: 2019 ORV Timber Ridge 23DBS, Blue Ox SwayPro 15K/1500
TV: 2019 Ford F-250 XLT SuperCab LB, 6.2L, 4.30/e-locker, 4x4, 164" WB, 3216 payload
TV: 2014 RAM 1500 Big Horn CC (Traded in)
TT: 2015 Jay Flight SLX 195RB Baja Edition, Andersen No-Sway (Traded in)
ttavasc is offline   Reply With Quote
Old 10-13-2019, 09:45 PM   #1258
Senior Member

SailorSam's Avatar

Join Date: Apr 2016
Posts: 300
Quote:
Originally Posted by ttavasc View Post
Swapped the analog heat/cool thermostat for a digital one. I went with another Coleman-Mach to match wire for wire and mounting. Very easy and quick upgrade to make - less than 20 minutes. One thing I did notice is it appears that this digital model is being phased out and replaced with a much narrower model which looks like it would complicate things as it may not cover the old mounting holes.

I did the same 2 years ago. still working perfectly...
__________________
Al
SE Michigan, F-150 Plat SCrew, Flagstaff 26 FKWS, ProPride
SailorSam is offline   Reply With Quote
Old 10-15-2019, 02:28 PM   #1259
Junior Member

Join Date: Mar 2019
Posts: 5
New solar/LiFeO4 setup in my 25RDS

After enjoying my shiny new 25RDS for just a few months, I embarked on an electrical upgrade including BattleBorn Lithium batteries, 3KVA Victron inverter, Victron Solar Controller and Battery Monitor, and 700W of solar panels. Fair bit of work, but came together nicely.

I found space under the bed for up to 4 BattleBorn 100AH Lithium batteries, but could only stomach budget for 3... I had to shorten one of the drawers by an inch, but that's the only inside storage sacrifice I had to make.


I put the Victron inverter, solar controller, and associated breakers, shutoffs, and bus bars on a sheet of HDPE in the pass-thru storage area. (There's a sheet of lexan that covers the section with the exposed bus-bars to protect it from stuff that might bounce around in there on the road, but that's removed for the photo.)
Bent copper bus-bars pass directly through the wall behind this panel to the under-bed storage compartment, where they connect to the batteries through big old 4/0 AWG cables.
I ran a couple pairs of 6AWG cable via conduit through the floor and up to the wiring access panel behind the A-frame. One pair spliced into the factory 8AWG solar pre-wiring for the rooftop panels, and the other pair connected the battery bus bars to the factory DC distribution setup.
The AC wiring involved running two 10/2 Romex cables via a single conduit through the floor, and up to the load center and EMS. The conduit routed along the outside of the chassis I-beam.




Four 175W Newpowa panels fit nicely up on the roof. I fabricated mounts that will allow the panels to tilt side-to-side, should I ever feel so inclined (pun intended).

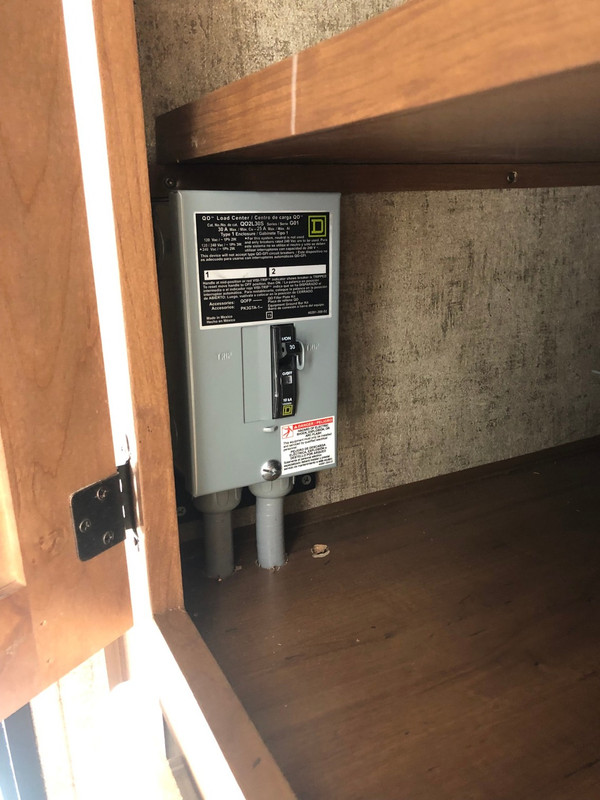

While I was at it, installed a new 30A main breaker between the shore power input and the inverter. This is mounted in the bedroom closet above the load center.

And I installed a Progressive EMS after the breaker, and before the inverter. This is mounted alongside the drawer above the load center, occupying otherwise wasted space.


The battery monitor and EMS have their own displays, but the rest of the Victron gear is all managed/viewed via their app on my phone. Really slick.


Got a chance to test this out on our first boondocking trip up the central California coast recently, and it all worked great. SWMBO was able to enjoy her morning coffee, hairdryer, microwave, etc. while off-grid, so this investment/gamble looks like it's paying off. (If her first boondocking trip sucked, there may not have been a second...) Wish me luck.
__________________
2019 Timber Ridge 25RDS
2016 Ford F150 EB 3.5 Maxtow
Poway, CA
oshucks is offline   Reply With Quote
Old 10-15-2019, 04:04 PM   #1260
Senior Member

brulaz's Avatar

Outdoors RV Owners Club
Join Date: Dec 2014
Location: Ontario Canada
Posts: 1,736
Wow. Very, very nice job.
You and others here are really putting my haphazard system to shame.
One of these days I'll have to do something about that ... maybe. But since it works fine ... maybe not.
__________________

__________________
2014 Timber Ridge 240RKS, 61K miles
690W Rooftop + 340W Portable Solar, 215Ah GC2s@24V
2016 Ram 2500 CTD 4x4 RegCab SLT, 10.4 mpgUS tow
brulaz is offline   Reply With Quote
