Thumbs up A Solar Installation Thread

If you've been considering solar, maybe this thread will provide you with a little useful info.

I recently ordered the components necessary to install 270 watts of solar power on my 21' travel trailer. These items have started arriving so I will begin the thread that will document the installation process. More posts into this thread will follow as other things arrive and the installation begins.

I created a page on our our web site that will greatly detail how we decided what to get. You can view that page by clicking here.

So here's what I purchased:

2 Kyocera KD135GX-LPU 135-watt solar panels
1 Blue Sky Solar Boost 3024iL MPPT Charge Controller
1 IPNPRO-S Remote Display and Battery Monitor w/Shunt
1 Remote Battery Temperature Sensor
2 MC4 Multibranch connectors (to wire panels in parallel)
2 Sets of Flat Mount Roof Mounts
30' of #6 Wire (from panels to controller)
12' of #4 wire (from controller to batteries)
1 30A Inline Fuse Holder w/Fuse
2 30A Breakers (to act as disconnects for the solar panels)

The panels spec out as follows:
Max Rated Power (Pmax) - 135 Watts
Voltage at Max Power (Vmpp) - 17.7
Current at Max Power (Impp) - 7.63 Amps
Open Circuit Voltage (Voc) - 22.1
Short Circuit Current (Isc) - 8.37 Amps
Length x Width x Depth (inches) - 59.1 x 26.3 x 1.8
Weight of Panel (Pounds) - 28.7
Connector Cable Type - MC4 Latching Cables

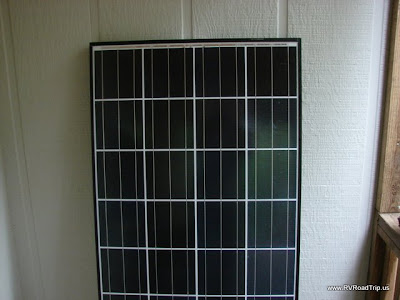

The front of the panel:

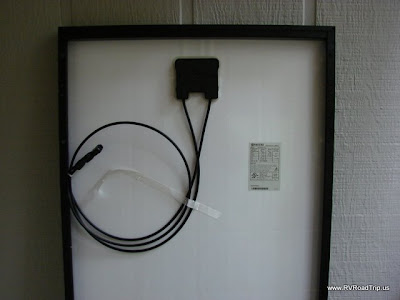

The rear of the panel:

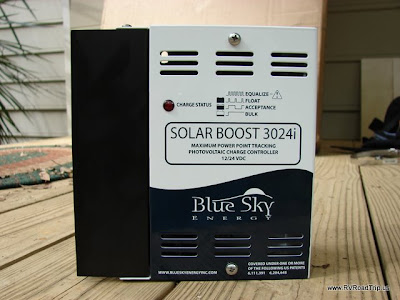

The charge controller exterior:

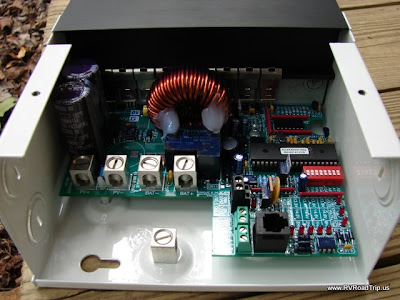

The charge controller interior:

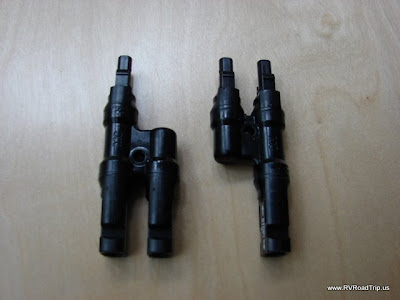

The MC4 Multibranch Connectors:

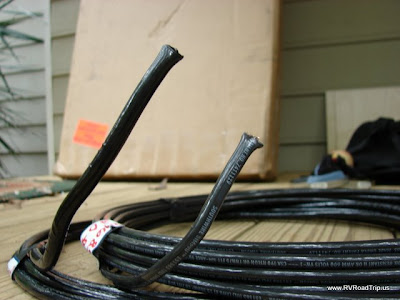

The wire:



As of today, I am still waiting on the panel mounts, the remote display, the temperature sensor and one more wire to arrive. I will update the thread once these arrive and the installation progresses.
__________________

__________________
2004 Gulf Stream Conquest 6236 Ultra Limited Edition 24' Class C towing a 1999 Jeep Cherokee 4x4
RV Mods and Upgrades | The Blog - Full-Time RVing on a Budget | RVnumber.com?1
RVRoadTrip is offline   Reply With Quote
Join the #1 RV Forum Today - It's Totally Free!

iRV2.com RV Community - Are you about to start a new improvement on your RV or need some help with some maintenance? Do you need advice on what products to buy? Or maybe you can give others some advice? No matter where you fit in you'll find that iRV2 is a great community to join. Best of all it's totally FREE!

You are currently viewing our boards as a guest so you have limited access to our community. Please take the time to register and you will gain a lot of great new features including; the ability to participate in discussions, network with other RV owners, see fewer ads, upload photographs, create an RV blog, send private messages and so much, much more!

Old 09-11-2009, 03:34 PM   #2
Senior Member

RVRoadTrip's Avatar

Join Date: Sep 2009
Posts: 120
UPS just delivered the Blue Sky IPNPRO-S Remote Display with the shunt.

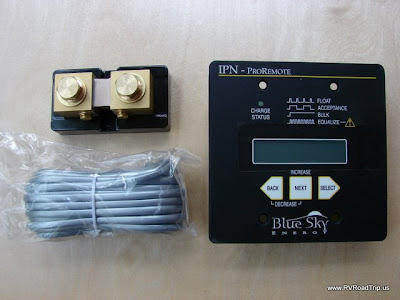

Frontal view:

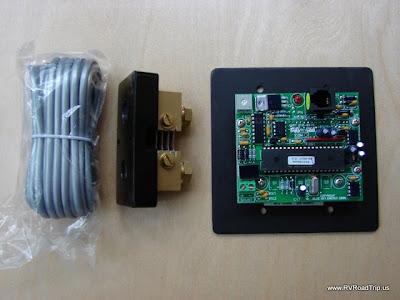

Rear view:



All that remains to be delivered are the panel mounts, the temperature sensor and another wire. Scheduled delivery date for those items is the 14th and 15th. I hate waiting...
__________________

__________________
2004 Gulf Stream Conquest 6236 Ultra Limited Edition 24' Class C towing a 1999 Jeep Cherokee 4x4
RV Mods and Upgrades | The Blog - Full-Time RVing on a Budget | RVnumber.com?1
RVRoadTrip is offline   Reply With Quote
Old 09-11-2009, 06:06 PM   #3
Senior Member

450Donn's Avatar

Join Date: Jun 2006
Location: Dallas,OR
Posts: 2,551
So what type and how many batteries are you using?
__________________
Don and Lorri
2007 Dodge 3500 dually
Resident Dummy.
450Donn is online now   Reply With Quote
Old 09-11-2009, 07:01 PM   #4
Senior Member

RVRoadTrip's Avatar

Join Date: Sep 2009
Posts: 120
Starting off with 2 Trojan T-105s with room for 2 more.
__________________
2004 Gulf Stream Conquest 6236 Ultra Limited Edition 24' Class C towing a 1999 Jeep Cherokee 4x4
RV Mods and Upgrades | The Blog - Full-Time RVing on a Budget | RVnumber.com?1
RVRoadTrip is offline   Reply With Quote
Old 09-11-2009, 08:22 PM   #5
Senior Member

Join Date: Feb 2003
Location: South Prarie WA USA
Posts: 163
Road Trip .. I'm very happy you joined our forum, again Thanks for sharing some excellent Ideas.
__________________
99 F350 4X sc 6sp Dually, 03 Montana 3655FL/5er

http://www.wsdot.wa.gov/traffic/passes/white/ not far from home...
Frankenstien is offline   Reply With Quote
Old 09-11-2009, 09:03 PM   #6
Senior Member

powerboatr's Avatar

Damon Owners Club
Freightliner Owners Club
Join Date: Mar 2006
Location: North East Texas
Posts: 3,666
road trip THANKS for the SUPERB education at your web link
man i wish trig had been explained so well
__________________
USN Retired, Life time member of the DAV.
Enjoying the 2008 Damon Tuscany 4056, no your eyes are fine, there are really 6 slides
2016 Expedition Toad on Hauler flat bed
powerboatr is offline   Reply With Quote
Old 09-12-2009, 10:11 AM   #7
Senior Member

450Donn's Avatar

Join Date: Jun 2006
Location: Dallas,OR
Posts: 2,551
From my reading and understanding then you are over killing on the panels. With that much power available you need a minimum of 4 and more likely 6 batteries 12 volt batteries. Which translates into a lot of 6 volt batteries.
__________________
Don and Lorri
2007 Dodge 3500 dually
Resident Dummy.
450Donn is online now   Reply With Quote
Old 09-12-2009, 06:15 PM   #8
Senior Member

RVRoadTrip's Avatar

Join Date: Sep 2009
Posts: 120
Quote:
Originally Posted by 450Donn View Post
From my reading and understanding then you are over killing on the panels. With that much power available you need a minimum of 4 and more likely 6 batteries 12 volt batteries. Which translates into a lot of 6 volt batteries.
What it amounts to is that I can still get fully charged even on cloudy days.
__________________
2004 Gulf Stream Conquest 6236 Ultra Limited Edition 24' Class C towing a 1999 Jeep Cherokee 4x4
RV Mods and Upgrades | The Blog - Full-Time RVing on a Budget | RVnumber.com?1
RVRoadTrip is offline   Reply With Quote
Old 09-12-2009, 07:16 PM   #9
Senior Member

Theberrys's Avatar



National RV Owners Club
Join Date: Jun 2009
Posts: 2,605
Road Trip
Great white paper. I agree with all of it except the modified sign wave inverters. You just don't know what doesn't like them till the smoke gets out. You haven't mentioned how much all this great stuff costs. I need that data to go bgefore the CFO.

BTW I like Pie as well!!!

Dick
__________________
1999 Tradewinds 7372 Cat 3126
Albuquerque, NM
Theberrys is offline   Reply With Quote
Old 09-13-2009, 09:24 AM   #10
Senior Member

RVRoadTrip's Avatar

Join Date: Sep 2009
Posts: 120
Prices fluctuate on some of these items so I tried to list each item so viewers could look the item up online and find their best price. Regarding everything I have purchased, the grand total is under $1800.00 not counting my labor installing it all. I may send myself a bill but I doubt I will pay it.

The way I see it, if I boondock and save just $5 per night in CG fees, it only takes about 1 year to recoup the investment. If I save $10 a night (which is a more reasonable estimate), it will take just 180 days to recoup the investment.
__________________
2004 Gulf Stream Conquest 6236 Ultra Limited Edition 24' Class C towing a 1999 Jeep Cherokee 4x4
RV Mods and Upgrades | The Blog - Full-Time RVing on a Budget | RVnumber.com?1
RVRoadTrip is offline   Reply With Quote
Old 09-13-2009, 10:37 AM   #11
Senior Member

mythplaced's Avatar

Alpine Owners Club
Texas Boomers Club
Join Date: Jan 2009
Location: United States
Posts: 1,282
Quote:
Originally Posted by Theberrys View Post
....... I agree with all of it except the modified sign wave inverters. You just don't know what doesn't like them till the smoke gets out. .......
Dick
Yea, our AMana residential refrigerator compressor did not like the "modifed wave" and let us know by puking....$800!
__________________
Michael (Home base Northern CO)
USED TO HAVE; 03 Alpine 40MDTS Now RVless
http://www.tripadvisor.com/MemberPro...AA11052EA9DBB0
mythplaced is offline   Reply With Quote
Old 09-13-2009, 11:07 AM   #12
Senior Member

two2go's Avatar

Join Date: Dec 2007
Location: Parker, CO
Posts: 1,034
Does the Blue Sky controller accept higher input voltages? Connecting the panels in series instead of parallel would keep the amps at a reasonable level. I saw some controllers that allowed double voltage input, and also a high voltage panel when I was upgrading my system. I considered it because I have existing roof wiring that is limited to 7-8 amps, but ended up with a single panel due to cost.
__________________
2017 Coachmen Orion, Ford Transit 3.7L: previous
'09 Pleasure Way Lexor, '05 NRV Dolphin 5342
two2go is offline   Reply With Quote
Old 09-13-2009, 11:32 AM   #13
Senior Member

RVRoadTrip's Avatar

Join Date: Sep 2009
Posts: 120
Quote:
Originally Posted by two2go View Post
Does the Blue Sky controller accept higher input voltages? Connecting the panels in series instead of parallel would keep the amps at a reasonable level. I saw some controllers that allowed double voltage input, and also a high voltage panel when I was upgrading my system. I considered it because I have existing roof wiring that is limited to 7-8 amps, but ended up with a single panel due to cost.
Yes, it does. I specifically chose to wire in parallel and not series. With series wiring, if one panel get partial shade it affects the whole system even if the other panel is in full sun.
__________________
2004 Gulf Stream Conquest 6236 Ultra Limited Edition 24' Class C towing a 1999 Jeep Cherokee 4x4
RV Mods and Upgrades | The Blog - Full-Time RVing on a Budget | RVnumber.com?1
RVRoadTrip is offline   Reply With Quote
Old 09-15-2009, 03:20 PM   #14
Senior Member

RVRoadTrip's Avatar

Join Date: Sep 2009
Posts: 120

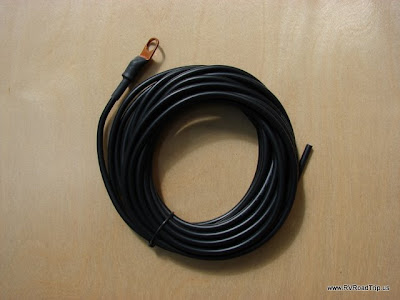

The Blue Sky Battery Temperature Sensor arrived today. Only thing left are the panel mounts. They sent the wrong ones so they are having to re-ship the correct ones. Anyway, here's what the temp sensor looks like.

__________________

__________________
2004 Gulf Stream Conquest 6236 Ultra Limited Edition 24' Class C towing a 1999 Jeep Cherokee 4x4
RV Mods and Upgrades | The Blog - Full-Time RVing on a Budget | RVnumber.com?1
RVRoadTrip is offline   Reply With Quote
