A Crappy Project That Ain't That Crappy.

As I prepare to pour concrete for my new motor home's parking pad, (relate to tread First Timer RV Owner In The House. in my intro) I thought of installing the plumbing for a waste station.

Over kill but as you get to know me you'll find out I love complicating my life.

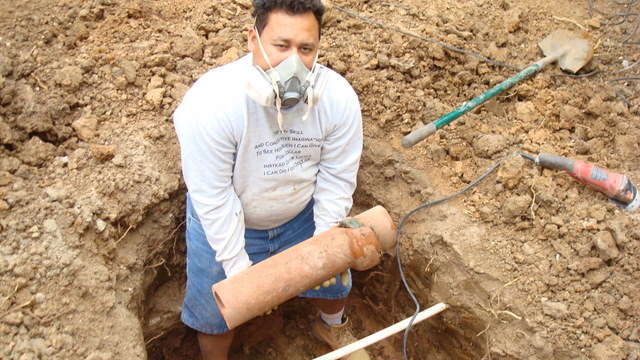

So I had to dig a 4'wx4'Lx4'D trench in order to have enough room to modify my sewer waste line.

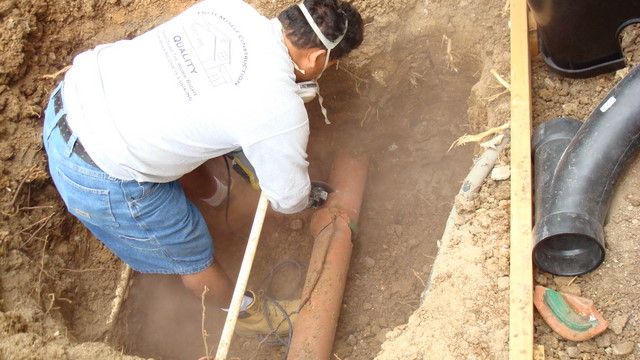

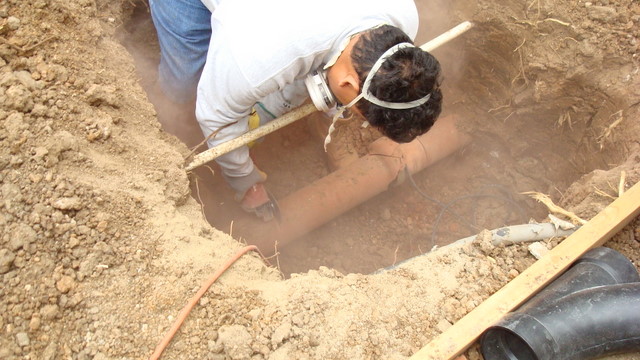

I then took my grinder and with a diamond/masonry blade I cut the clay sewer line.

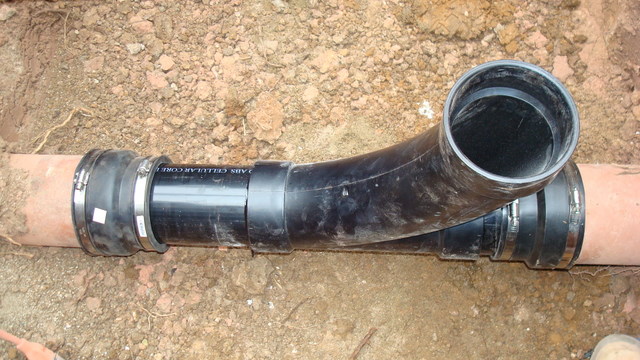

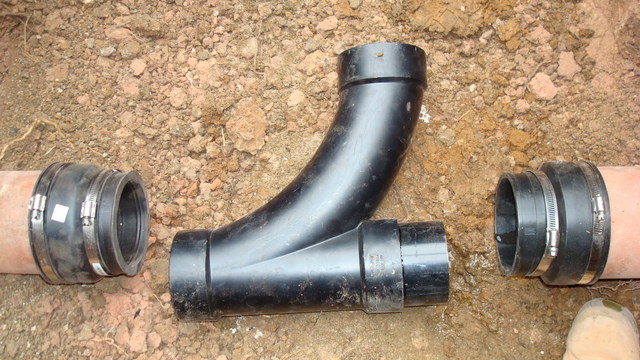

Installing the boot that fits clay pipe to abs 4" pipe.

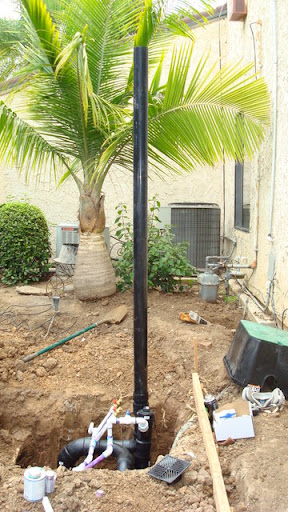

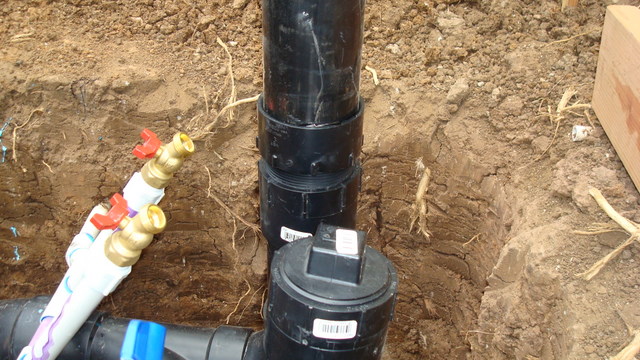

Now comes the dump station puzzle.





After putting it together I have direct fresh water flush, eliminating the need to bring in a hose to clean the waste inlet; kind of like, after flushing your toilet.

Double hose hookup, one to hookup to the RV, the other for washing off any mess. Eliminates the need to run house/s from a hose spigot which is about 10ft away in my case.

The trap, which traps water and stops the sewer gases from blowing into my nostril when I first open the drain, is the over kill I'm talking about. But as I advertise: Quality, means doing the work right even one no one is looking.

I also took the time and installed the proper venting so I won't have to be smelling my own............well.....you get the point.



Before I dump the waste I can thread a 3" vent.

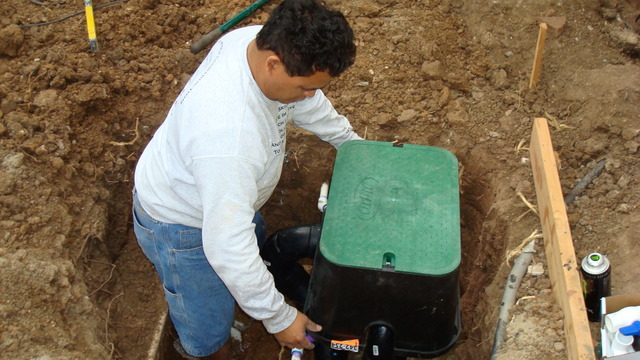

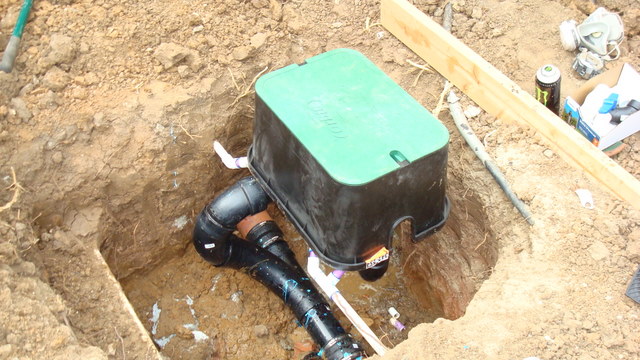

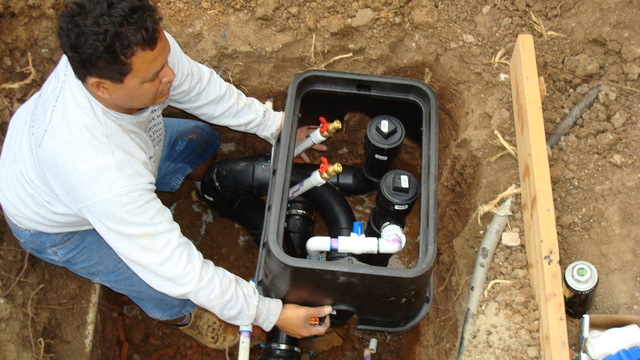

After all is said and done I'll have it encased with an 20" Rectangular irrigation Valve Box.







Any other ideas, suggestions or components I'll be needing that I may not know of, please post you opinion.

Thanks,

Leonardo.
__________________

__________________
When I'm not in right mind, my left mind gets pretty crowded.

OGTerror's Off Road Videos
OGTerror is offline   Reply With Quote
Join the #1 RV Forum Today - It's Totally Free!

iRV2.com RV Community - Are you about to start a new improvement on your RV or need some help with some maintenance? Do you need advice on what products to buy? Or maybe you can give others some advice? No matter where you fit in you'll find that iRV2 is a great community to join. Best of all it's totally FREE!

You are currently viewing our boards as a guest so you have limited access to our community. Please take the time to register and you will gain a lot of great new features including; the ability to participate in discussions, network with other RV owners, see fewer ads, upload photographs, create an RV blog, send private messages and so much, much more!

Old 05-14-2011, 10:53 PM   #2
Registered User

Fleetwood Owners Club
Join Date: Feb 2010
Location: Granite Falls, NC
Posts: 1,156
Blog Entries: 8
i did mine the easy way. There was a sewer man hole cover right next to my property line and all I do is ''lift the lid and dump''. Damn good looking work on your part friend.
Lets all thank a veteran for our freedoms this May 30
__________________

__________________
Seajay is offline   Reply With Quote
Old 05-14-2011, 11:13 PM   #3
Senior Member

Arch Hoagland's Avatar

Monaco Owners Club
Workhorse Chassis Owner
Join Date: Aug 2002
Location: Clovis, CA, USA
Posts: 5,902
Excellent job!!! You'll pat yourself on the shoulder for years to come. I had a sewer connection built in when we had our house built. It is REALLY nice to be able to clean out the tanks at home.
I did not see an anti siphon valve on the water bibs. I think you want them if you are connecting to black and grey tanks.

I'm curious why you have two sewer connections. Does your RV have a separate connection for black and grey?
__________________
2004 Monaco La Palma 36DBD, W22, 8.1, 7.1 MPG
2000 LEXUS RX300 FWD 22MPG 4020 LBS
Arch Hoagland is offline   Reply With Quote
Old 05-15-2011, 12:08 AM   #4
Member

OGTerror's Avatar

Join Date: May 2011
Posts: 50
Quote:
Originally Posted by Arch Hoagland View Post
Excellent job!!! You'll pat yourself on the shoulder for years to come. I had a sewer connection built in when we had our house built. It is REALLY nice to be able to clean out the tanks at home.
I did not see an anti siphon valve on the water bibs. I think you want them if you are connecting to black and grey tanks.

I'm curious why you have two sewer connections. Does your RV have a separate connection for black and grey?
Excellent point you make, I will need to install an anti siphon valve before the shut off valve to correct the problem.

Good observation and thanks for pointing that out.

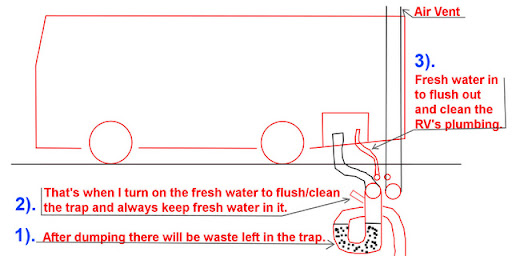

Regarding the 2 connectors, 1 is the outlet (air vent) the other is the inlet (main dump) as illustrated on this pic.
