Old 03-29-2009, 09:54 PM   #1
Join Date: Aug 2006
Posts: 71
RV garage structure

We are in the process of designing an RV garage structure for a large lot. We want an upscale look, metal buildings not allowed by CCRs. The neighborhood varies between ranch and mountain lodge, and we are near a high end golf resort, mostly mountain style second homes.

Our needs include a 20' x 50' RV space. Large double garage, 30' x 30', a shop 20' x 30' including staircase to upper level. Add a 650 sf apartment over the shop. All under one roof. Garage doors, 14' x 14', 2- 10' x 12' and a 7' x 8' into the shop.

Any design thoughts? What other great ideas should be included and considered? Or mistakes made. Anyone with an RV /house structure looking close to this?

Thanks Ed

Alpine Coach, 2007 Apex MDT
Ed & Diane is offline   Reply With Quote
Join the #1 RV Forum Today - It's Totally Free!

iRV2.com RV Community - Are you about to start a new improvement on your RV or need some help with some maintenance? Do you need advice on what products to buy? Or maybe you can give others some advice? No matter where you fit in you'll find that iRV2 is a great community to join. Best of all it's totally FREE!

You are currently viewing our boards as a guest so you have limited access to our community. Please take the time to register and you will gain a lot of great new features including; the ability to participate in discussions, network with other RV owners, see fewer ads, upload photographs, create an RV blog, send private messages and so much, much more!

Old 03-30-2009, 01:27 PM   #2
Senior Member
dirko's Avatar
Ford Super Duty Owner
Join Date: Dec 2002
Location: Draper, UT
Posts: 543
Hi Ho: Sounds like an ambitious project. Heating, coolinig, lighting, water and sewer are all things that make this kind of project really useful. If you already have a dump station somewhere else, then that doesn't apply. It is handy to have the heat so that each section can have a different temperature.

Plan for plenty of electrical power, especially for the shop. I like a 220 V, 50 amp outlet for a welder and also have four other 220-volt circuits in the shop at 20 or 30 amps. This sounds like a lot, but if you do woodwork, then the table saw, jointer, dust collector and other stuff often needs 220 volts. A 100 amp service for the shop is not unreasonable.

I like dual 8-ft HO light fixtures because they put out a lot of light and don't care what the temperature is. They do hum some, so that is the tradeoff.

Since you want an apartment this is really like another house. If there is not a house there, think about the style of house that would be built some day and try to follow that same style in the out building.

Have fun, Dirk

dirko is offline   Reply With Quote
Old 03-30-2009, 02:51 PM   #3
Fleetwood Owners Club
Freightliner Owners Club
Join Date: Apr 2008
Location: Lake Wales, FL
Posts: 53
Install dual hookups so that regardless of which way you put the RV in the garage, the hookups are easily accessible.
2008 Bounder 36D
2013 GMC Terrain Toad
Chezhead is offline   Reply With Quote
Old 03-30-2009, 03:54 PM   #4
Senior Member
j griff's Avatar
Winnebago Owners Club
Workhorse Chassis Owner
Join Date: Jul 2006
Location: Belleville, IL
Posts: 194
Wow – that is indeed quite a project. If the doors are all on the same side it turns out to be a 50 x 50 ft building (20’x50’ + 2 ea 12’ and one 7’ = 51’) or is my reasoning bad ??
I presume a cement floor? What I miss about the barn I built is a trench so that I could access the chassis without having to crawl, roll, etc. Of course the trench would need drainage capability. My floor is rock because a concrete floor would have added so much to the annual property tax bill that I settled for less.
I agree with Dirk on plumbing, heating and electrical thoughts.
2005 Winnebago Adventurer 33RV | 2004 WH W20 Chassis | 2010 Honda CR-V Toad
USAF Ret June 1990 | 42 years continuous Active Duty
49 States | 10 Provinces | 50 years RVing
j griff is offline   Reply With Quote
Old 03-30-2009, 05:37 PM   #5
Moderator Emeritus
TXiceman's Avatar

Vintage RV Owners Club
Texas Boomers Club
Oklahoma Boomers Club
Ford Super Duty Owner
Join Date: Aug 2000
Location: Full Time, TX Home Base
Posts: 17,139
Blog Entries: 21
Let me know your address and we'll be sure to stop and camp at your place...if you are not home, just leave the keys with your neighbor.

Amateur Radio Operator (KE5DFR)|Full-Time! - 2012 6.7L Ford Crew Cab Dually -2013 HitchHiker Champagne 38RLRSB - Travel with one Standard Schnauzer and one small Timneh African Gray Parrot
TXiceman is offline   Reply With Quote
Old 03-31-2009, 09:30 AM   #6
Senior Member
Wingnut57's Avatar
Pond Piggies Club
Join Date: Dec 2008
Location: Eastern Mid-Michigan
Posts: 138
Look at these a lot of styles to choose from: http://www.unclehowardsrvbuildings.com/
Roger, Cindy & Dawg
02 F250 PSD/07 CF29RK Cruiser
You can get there from here, it just takes longer
Wingnut57 is offline   Reply With Quote
Old 04-01-2009, 05:38 PM   #7
Senior Member
porscheracer's Avatar
Join Date: Apr 2008
Location: Back at the stix'n'brix - East End, AR.
Posts: 553
Metal buildings not allowed, or just no exposed metal?? Applying siding is not that expensive.

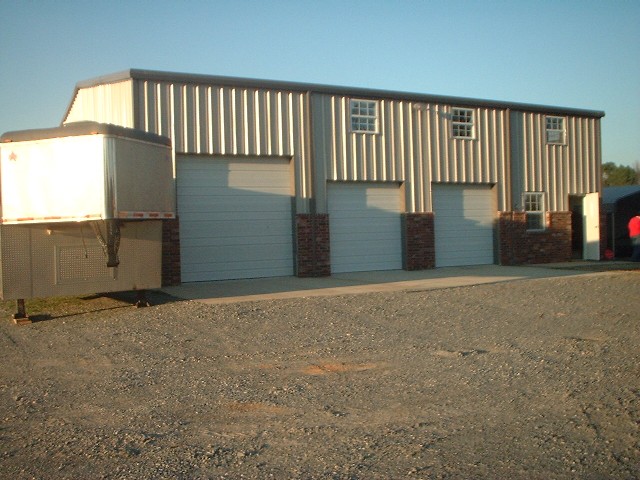

I designed and had built our RV garage. It has a 16x50 MH bay with 50A electric, water, and sewer / dump. It also has a large work bay and 2 car bays plus an office and full bath. Additionally it has about 1000 sq/ft of upstairs storage.


Norm & Janet

FMCA; WIT; FCOA; Good Sam; Passport
porscheracer is offline   Reply With Quote
