Question about Xantrex Inverter and Freedom Remote Control

I couldn't get my inverter to work so I removed the Freedom remote from the wall and checked the plug and it was plugged in and then I checked the inverter and the phone cord was plugged into the inverter. Still no control on the remote.

I then unplugged and replugged in the remote again and the only light that came on the remote was the one on the charge button. It stayed solid and didn't blink and then turned off about 30 seconds later. No matter what buttons I push on the remote I cannot get any lights to come on the remote unless I unplug it and re-plug it in.

If I go to the inverter directly and press invert then the TV works with the generator off so I know the inverter is working but I would like to get the remote working in the coach.

Now another thing, my main panel in the motorhome has a switch that says Inverter On/Off and when I plug the cord into that I still cannot control the inverter.

Any ideas?

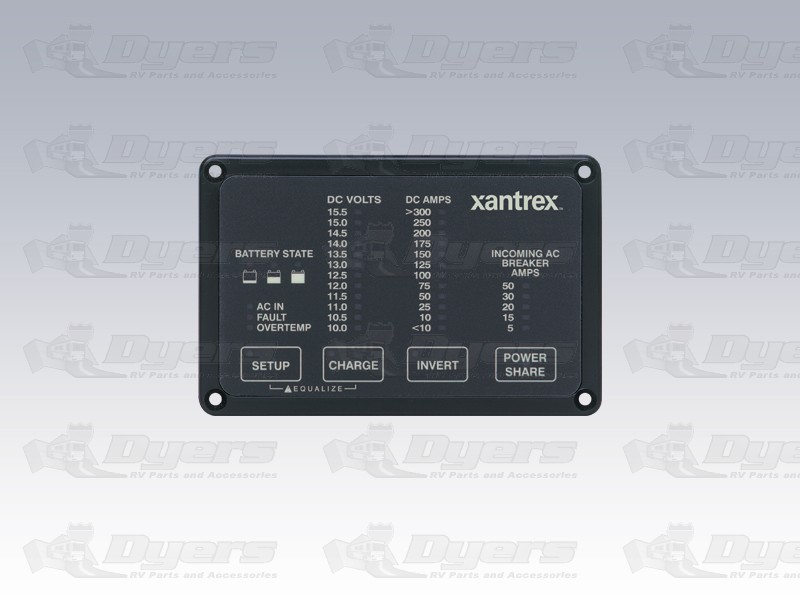

Here is the panel:

Inverter I have is the Freedom 458
1998 Fleetwood Discovery 36T Diesel Pusher
Zoafan is offline   Reply With Quote
Join the #1 RV Forum Today - It's Totally Free! RV Community - Are you about to start a new improvement on your RV or need some help with some maintenance? Do you need advice on what products to buy? Or maybe you can give others some advice? No matter where you fit in you'll find that iRV2 is a great community to join. Best of all it's totally FREE!

You are currently viewing our boards as a guest so you have limited access to our community. Please take the time to register and you will gain a lot of great new features including; the ability to participate in discussions, network with other RV owners, see fewer ads, upload photographs, create an RV blog, send private messages and so much, much more!

Old 01-17-2013, 04:52 PM   #2
Senior Member
Join Date: Jun 2010
Posts: 163
Is the fluid level in your batteries ok and are the batteries charged?

It sounds like you are not connected to shore power as you mentioned when you hit the invert button you can run your TV. I would connect to shore power and see if the panel works.

Here is the manual for the panel:

Your panel may be in Low Power Mode, which turns off the lights on the front panel. Depress and briefly hold down the Invert Button and see if the display returns to normal.

If that does not work, try disconnecting from shore power and start the engine in your motorhome. If the panel suddenly works your batteries are dead and the inverter and panel will not work until you have charged them to some degree.
vtbigdog is offline   Reply With Quote
Old 02-10-2013, 09:21 PM   #3
Senior Member
GregOk80's Avatar
Join Date: Dec 2012
Location: Glenpool, Oklahoma
Posts: 326
I have had the same problem with my inverter. I just unplugged both cables (like phone jacks) from the inverter and wait 30 seconds to a minute. Make sure inverter is in sleep mode or off before doing so. Re connect both cables and throw breakers off and on and repower inverter with shore power or generator.
GregOk80 is offline   Reply With Quote
Old 02-11-2013, 10:12 AM   #4
Senior Member
PyrateSilly's Avatar
Monaco Owners Club
Join Date: Jul 2011
Posts: 2,200
We just replaced our old 1500 watt Xantrex and remote panel just like that with a 3000 watt pure sine Xantrex with a new remote panel.

Several reasons we had to replace. One being the microwave was not sized correctly to what the inv could handle. Two being is it was starting to not work itself. Wires were not staying connected inside the inv. Thom had to re-connect wires several times inside, finally we just bit the bullet and got one that we could then expand the solar and stuff on.
Thom and Christine having fun in a 1993 Monaco Crown Royale Signature Series 40ft 300hp RV. Towing a Fiat 500 Abarth and a Harley.
Our blogged repairs and travels
PyrateSilly is offline   Reply With Quote
Old 02-12-2013, 03:08 AM   #5
Moderator Emeritus
RV Wizard's Avatar

Country Coach Owners Club
Appalachian Campers
Gulf Streamers Club
Join Date: Mar 2000
Location: Chattanooga, Tn.
Posts: 12,060
More than likely the remote control circuit board inside the inverter is going to be the problem. This has been a fairly common issue with these. The inverter and remote panel can be sent out and repaired for mush less than replacing the whole system. Good luck and keep us posted.
Mike, RVIA & RVSA Certified Master RV Technician
Amy, Dr. Assistant - Roxie & Mei Ling, four legs each
2000 Gulf Stream Scenic Cruiser 450 hp & 1330# torque
06 Saturn Vue, 06 Chevy Z71 4x4 & 2014 Corvette Z51 M7
